INFO

MvDad
M - Moment
v - Shear
D - Deflection
a - Analysis
d - Design

Cloud Based RC Building Earthquake Resistant Structural Design Software.

For Sustainable Stable Structural Solutions.

As per IS Code: 456-2000, EARTHQUAKE: 1893-2016 And Ductile Detailing: 13920-2016

Free for Education Purpose

Features : 5 in 1
1. Analysis:
	A. Gravity Loads	Coefficient Method. Fixed End Moments
		2D and 3D Frame Analysis, Finite Element Analysis.
	B. Seismic Loads	a. Static Equivalent Coefficient Method
		b. Dynamic Response Spectrum Method
		ABS Method: Absolute Sum Method
		SRSS Method: Square root of Sum of Squares
		CQC Method: Complete Quadratic Combination.
	To check Structure Stability, Drift & Displacement, by P-Delta Method.
2. Design:	By reiterating Each and every element OPTIMISE the Most Economical Design.
	Footing, Column, R Beam, Flanged Beam, Slab
	Economical Beam Design on the basis of Bending Moment at the Face of the Column.
3. Drawing:	Plan, Elevation, Sectional Elevation, 3D. Reinforcement Detail drawing of Each and every element.
	A. SFD & BMD for DL / LL
	B. Reinforcement Detail Drawings of All the Elements. Footing, Column, Beam, Slab
	C. Centre of Gravity, Centre of Mass & Torsion Floor wise
	D. Displacement and Drift inter storey
4. Calculations:	Detail step by step Calculations for education purpose.
5. Bill of Quantities:
	Cement:	Element wise, Grade wise, Module wise, Floor wise.
	Steel Reinforcement:	Element wise, Grade wise, Dia wise, Module wise, Floor wise.
No training, no software, no hardware required—effortless and hassle-free benefits await you!
Benefits
1. Manpower:
	No Draftsman required for	Drawing
	No Professional Engineer required for
		Analysis
		Design
		Detail Drawing.
		Bill of Quantities.
2. Tools
	A. No Software
		Operating Software
		Drawing Software
		Analysis Software
		Design Software
		RC Detail Drawing Software
		Bill of Quantities Software
	B.No Hardware	Specific Hardware Not Required
3. Freedom	Work from Anywhere On Smart Mobile
	A. Multi Access
	B. Multi Users
	C. Multi Location
4. Green Revolution :	Environment Friendly PAPER LESS
5. Modelling	Dynamic Auto Modelling on Principals of Basic IS Codes Fundaments.
	Machine Learning of Frame Analysis and Design
6. SAFE	EARTHQUAKE Resistant STABLE STRUCTURE, to save Precious Human Life.
7. Availablity	24 X 7, 365 days. Save Precious Time.
8. Reports	Transparent RESULTS along with Entered Data In MS Excel & Graphic Format
9. Cost	Save on expensive software and computer Hardware

DATA

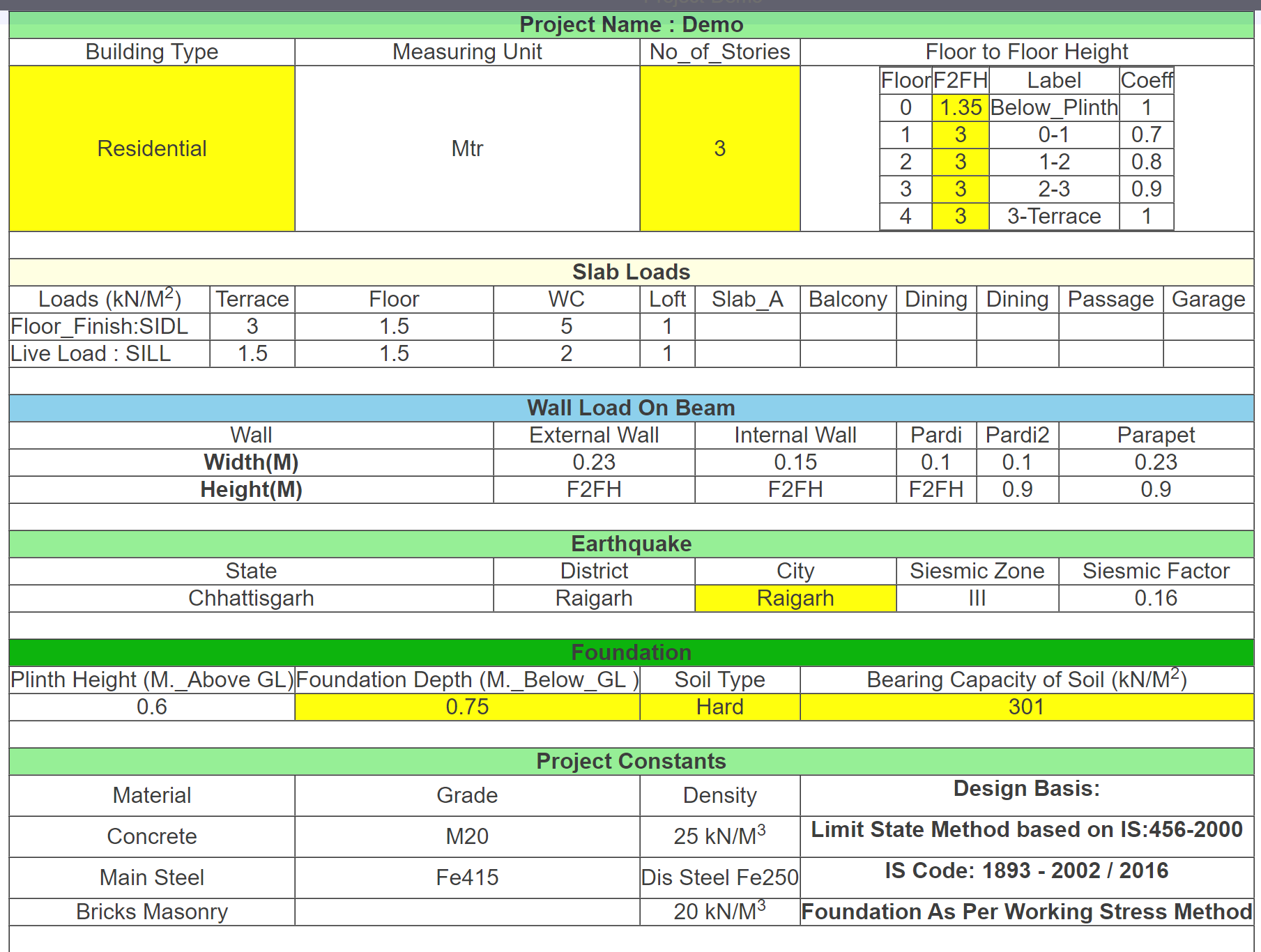

New Project Data Requirement

Only 6 Data ( Yellow color) to be selected from Drop down Box.

1. Residential or Commercial...

2. Location...

3. Floors...

others by default will be selected

Bearing Capacity of Soil Data to be Entered

Upload Center Line Plan with Column Locations

Slab Data and Column Location in Excel Format

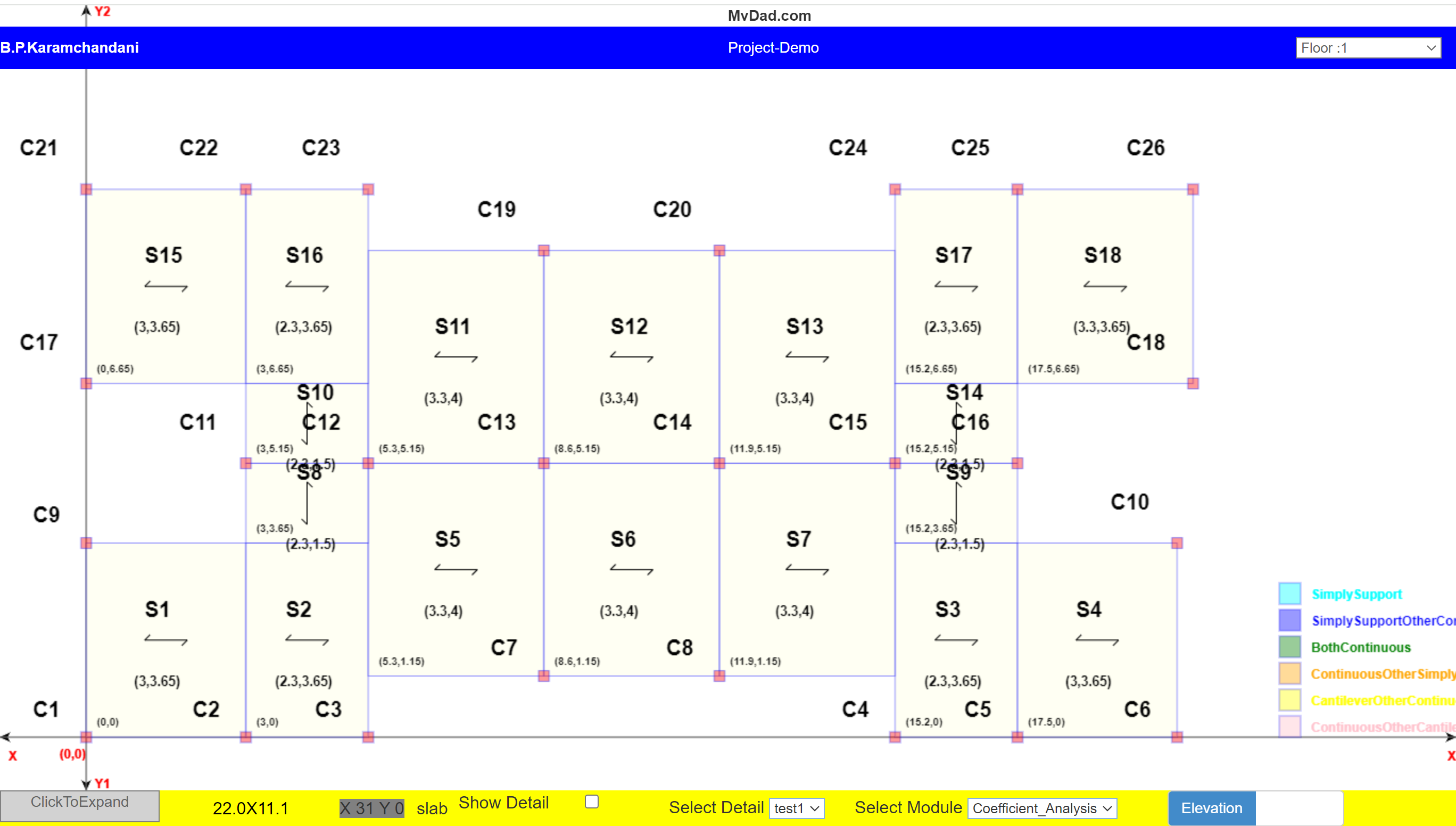

Center Line Plan with Column Locations :

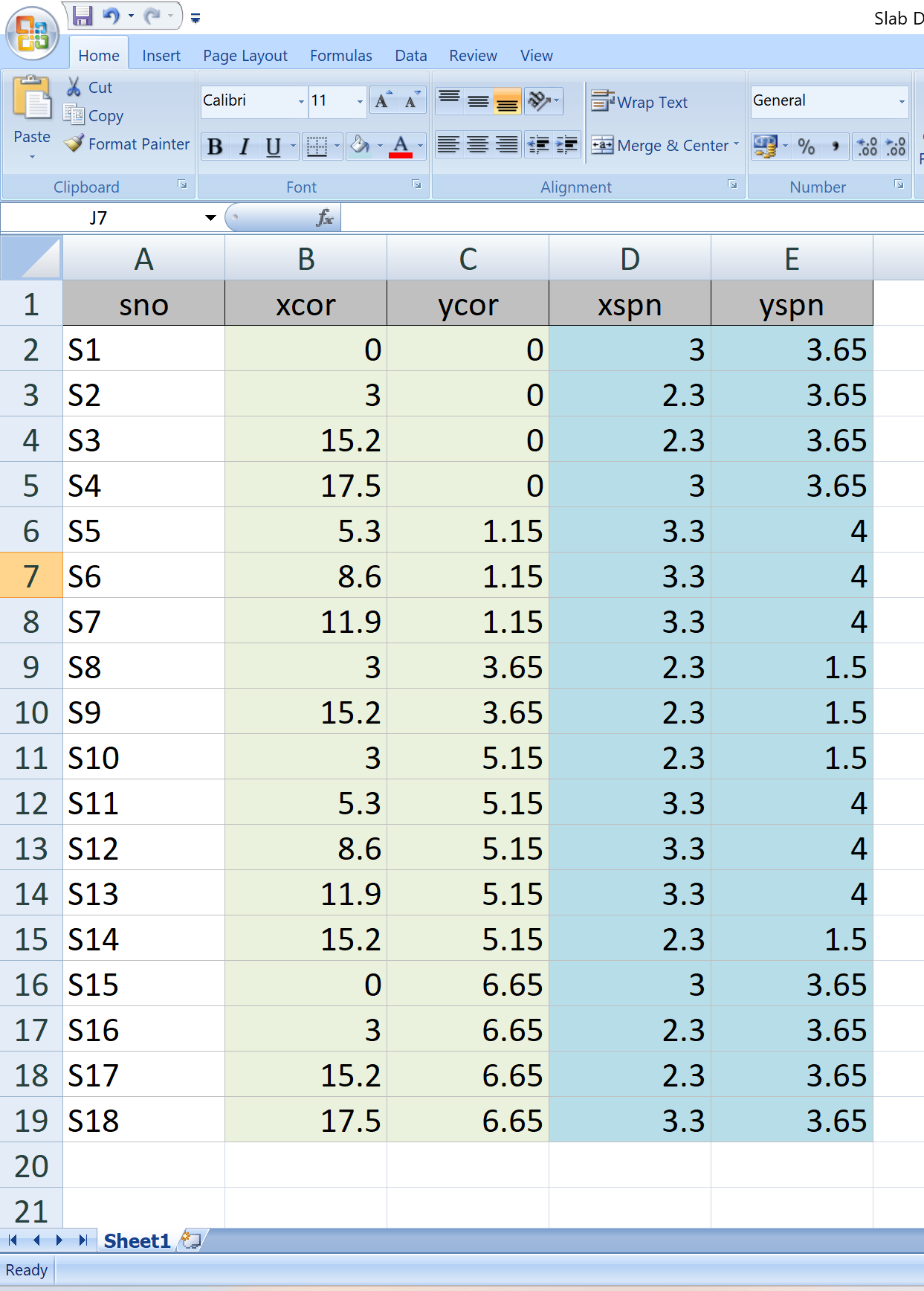

Slab Data in Excel Format :

Modelling

Data Requirement

Data Requirement
Element	Dimensions Required
Element	Other Softwares	MvDad.com
Slabs	L x W x D	L x W

Beams	W x D	Auto

Columns	w x D	Auto

Earthquake	Various	Auto

Modelling Requirement

Modelling Requirement
Particulars	Requirement
Particulars	Other Softwares	MvDad.com
Professional Experinced Staff	Yes	No

Time Consuming	Yes	Auto

Tedious	Yes	Auto

Repeatation if Model Fails	Yes	Auto

Modelling Procedure for Other Softwares

Modelling Procedure for Other Softwares
Particulars	Requirement
1. Create Project	Required Professional Experinced Structural Engineer

2. Create Grid	Required Professional Experinced Draftsman

3. Create Slabs	Assign Size	Width	Depth
		Length
	Assign Loads	DL	LL
	Assign End Conditions	SS	SC
		BC	Cantilever
	Assign Way	1 Way	2 Way
		Corners Free	Corners Restrained
	Assign Grade	Concrete	Steel

4. Create Beams	Assign Size	Width	Depth
	Assign Loads ( Walls )	Internal	External
		Pardi	Parapet
	Assign End Conditions	SS	SC
		BC	Cantilever
	Assign Type	Singly	Doubly
		R Beam	L or T Flanged Beam
	Assign Grade	Concrete	Steel

5. Create Columns	Assign Size	Width	Depth
		Column Size varies Floorwise
	Assign Load Type	Axial	Uni-Axial
		Bi-Axial
	Assign End Conditions	Pin Joint	Fixed
	Assign Type	Short Column	Slender Column
	Assign Grade	Concrete	Steel

6. Copy	Data Floorwise

7. Earthquake	Assign Response Factor
	Assign Importance Factor
	Assign Sa/g
	Assign Seismic Zone	II to V
	Assign Seismic Factor	0.10 to 0.46

8. Run Analysis	Final Analysis Results
	If Fails	Repeatation form Point 3 to Point 7 till you succed
	Or
	25 Load Combinations
		To Satisfy Stability
		To Check the Sway of the Particular Frame
		To make it Non Sway
		To Provide Additional Steel

	Satisfied	Lucky if in 1st attempt you get the satisfactory results

9. Observation	Elements are Oversized	to avoid the Repetative Modelling Process

Modelling	Full Process requires Time, Professional Experinced Structural Engineer, Concentration

Solution	MvDad.com
	Auto Modelling
